Description

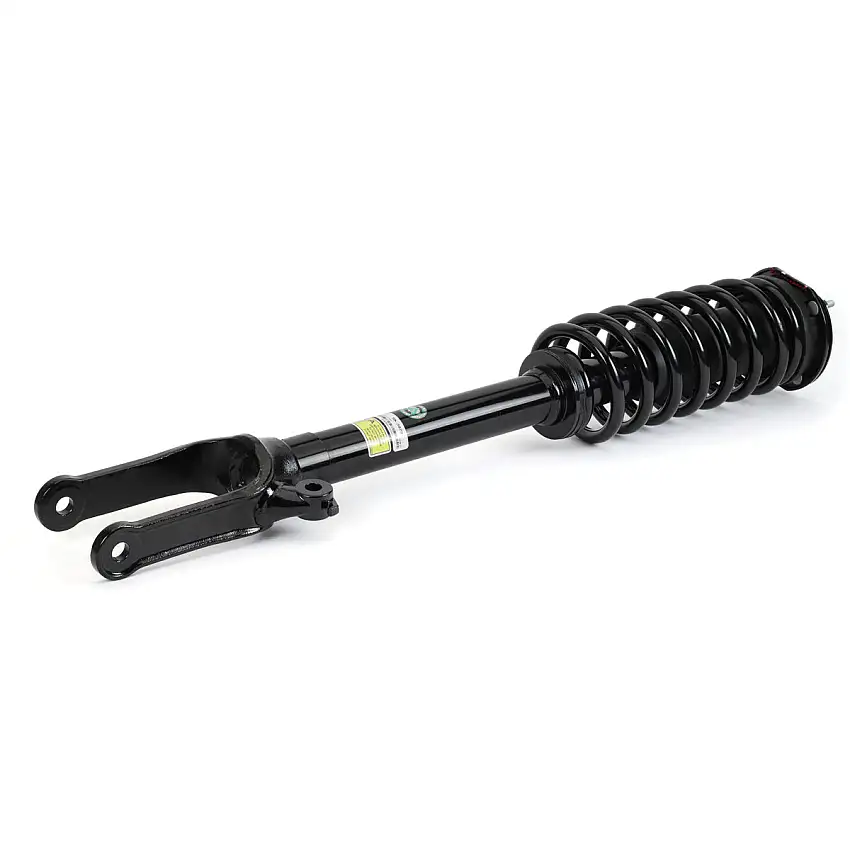

Arnott’s exclusive coil-over strut design delivers the stability, handling, control and comfort of the original OE strut with out any external commands from the vehicle.Arnott engineers have determined and tested the optimal internal strut settings to mimic the OE performance. Arnott recommends replacing these struts in pairs. Note: not for diesel engines
FEATURES
- Converts active to passive
- Exclusively for Mercedes-Benz ML-Class w/out ADS, incl AMG
- Custom-valved shock adapted to driving style
- Improved seals to prevent leaks
- Electronic to passive shock technology
- Engineered and assembled in the USA
- Replace in Pairs
SPECIFICATIONS
- Active Or Passive Suspension: Passive
- Adjustable: No
- Adjustable Compression: No
- Adjustable Damping: No
- Adjustable Rebound: No
- Adjustable Ride Height: No
- Air Adjustable: No
- Air Bladder: No
- Air Bladder Material: No
- Air Ride Suspension: No
- Bearing Plate Included: No
- Bladder Heavy Duty Crimping Rings Included: No
- Bladder Sleeve(s) Included: No
- Bladder(s) Included: No
- Body End Measuring Point: Center Eye
- Boot Included: No
- Coil Over Springs Included: Yes
- Coil Spring Included: Yes
- Compressed Length: 793.75
- Dust Shield Included: No
- Extended Length: 876.3
- Gas Charged: No
- Grade Type: Standard
- Heavy Duty Crimping Rings: No
- Housing Material: Steel
- Internal Construction Type: Twin-tube
- Internal Damper Type: Hydraulic
- Lower Mount Type: Bracket
- Lower Mounting Isolator Included: No
- Mounting Hardware Included: No
- New Or Remanufactured: New
- Progressive Spring Rate: No
- Protective Aluminum Can: No
- Shock Absorber Rod End Measuring Point: Shoulder of Stud
- Shock Spring Assisted: Yes
- Shock/strut Color: Black
- Spring Isolators Included: No
- Spring Seat Included: No
- Springs Included: Yes
- Travel Length: 82.55
- Upper Mount Type: Stud
- Upper Mounting Isolator Included: Yes
Replaces OEM part Numbers: 1643200130, 164320013064
