Description

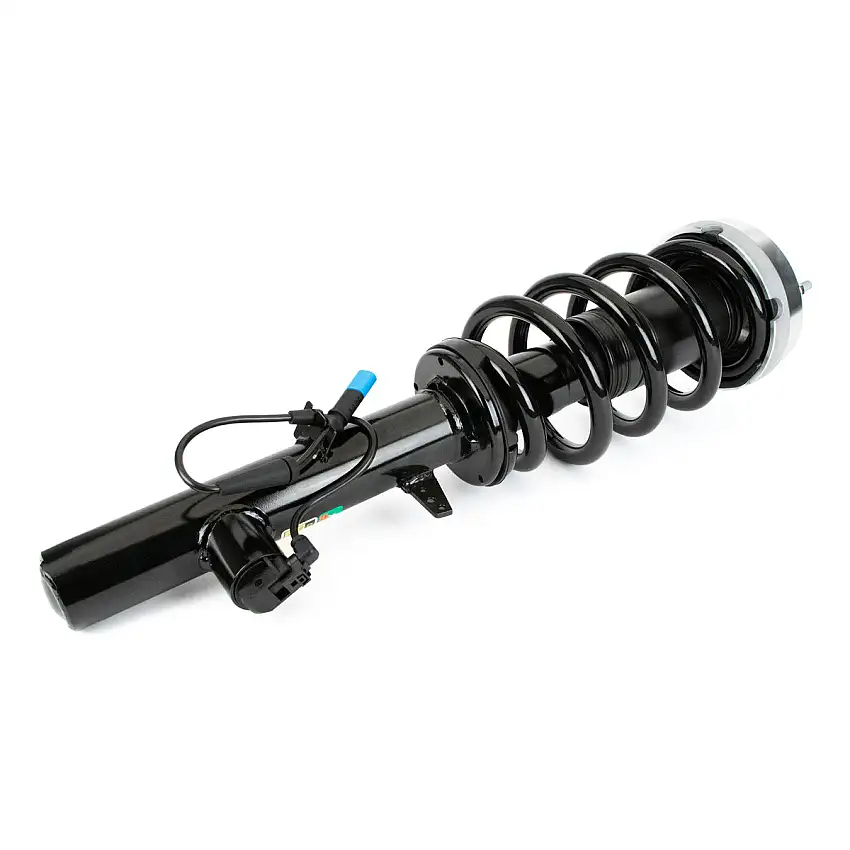

Arnott’s completely new coil over struts are built using quality components including custom-valved internal shocks and new steel coils. These coil over struts are engineered and rigorously tested on dyno machines and driven countless miles on Arnott’s fleet of test cars. Arnott-designed struts are an excellent passive alternative for aging air or electronic suspension systems restoring comfort by replacing the OE shock with a completely new custom-valved coil over strut to provide a great ride.
FEATURES
- Converts active to passive
- Exclusively for 2014-2019 BMW X5 (F15/F16)/2015-2019 X6 (F15/F86) with VDC and with Electronic Suspension
- Fits FRONT LEFT
- Custom-tuned damper calibrated to provide a smooth yet responsive ride
- Provide proper vehicle ride height when additional weight is loaded
- New spring seat, isolator and mounting hardware
- Pre-assembled with a new steel coil spring
- Replace in Pairs
SPECIFICATIONS
- Active Or Passive Suspension: Passive
- Adjustable: No
- Adjustable Compression: No
- Adjustable Damping: No
- Adjustable Rebound: No
- Adjustable Ride Height: No
- Air Adjustable: No
- Air Bladder: No
- Air Bladder Material: No
- Air Ride Suspension: No
- Bearing Plate Included: Yes
- Bladder Heavy Duty Crimping Rings Included: No
- Bladder Sleeve(s) Included: No
- Bladder(s) Included: No
- Body End Measuring Point: Center Eye
- Boot Color: Black
- Boot Included: Yes
- Coil Over Springs Included: Yes
- Coil Spring Included: Yes
- Compressed Length: 447
- Dust Shield Included: Yes
- Dust Shield Material: Plastic
- Extended Length: 578
- Gas Charged: Yes
- Grade Type: Standard
- Heavy Duty Crimping Rings: No
- Housing Material: Steel
- Internal Construction Type: Twin-tube
- Internal Damper Type: Hydraulic
- Lower Mount Type: Base Cup
- Lower Mounting Isolator Included: No
- Mounting Hardware Included: Yes
- New Or Remanufactured: New
- Progressive Spring Rate: No
- Protective Aluminum Can: No
- Shock Absorber Rod End Measuring Point: Shoulder of Stud
- Shock Spring Assisted: Yes
- Shock/strut Color: Black
- Spring Isolators Included: Yes
- Spring Rate Type: Linear
- Spring Seat Included: Yes
- Springs Included: Yes
- Travel Length: 131
- Upper Mount Type: Stud
- Upper Mounting Isolator Included: Yes
Replaces OEM part Numbers: 37106875083, 37116863173
